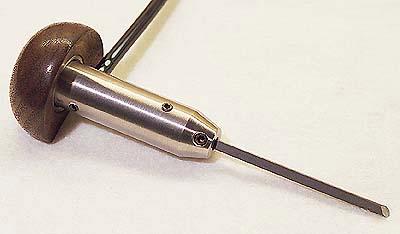

The Air Chasing Graver not only has
various impact adjustments but also has three positions for the
user to choose for the tubing attachment. The attachment choices are left rear,
right rear or to the front center of the handpiece body.
(Above) Illustrates the 3 intake ports. (Below) Illustrations
showing how the tool is held with the three options.

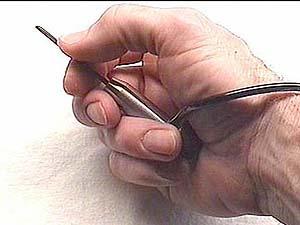

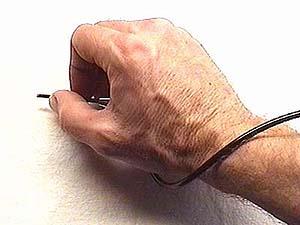

(Above) Tubing attached to the left rear of the handpiece.
The tubing is shown going over the wrist. It does not need to go over the wrist in this
manner but it will help to keep the tubing out of the swing of the vise.

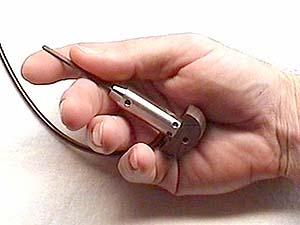

(Above) Tubing is attached to the right rear. In
this position the tubing is run between the ring and pinky fingers. This position is

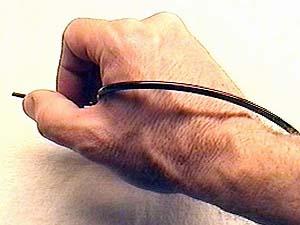

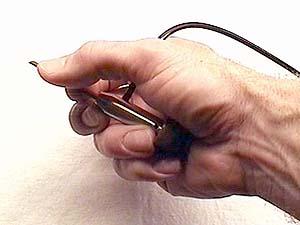

(Above) The tubing is attached to the front center portion of
the handpiece. In this position the tubing runs between the thumb and index finger
and over the wrist. This position will keep the tubing out of the swing of the vise
The tubing connecting the Air Chasing Graver measures just over 1/8"
in diameter. This tubing combines suppleness and flexibility with a wide range of
chemical resistance. It is resistant to sunlight (ultraviolet light), ozone and
