Welcome to Steve Lindsay's Hand Engraving WebSite

Please use the menu at the left for navigating the
hand engraving galleries and site.

Steve Lindsay Metal Engraving Tool
Tools for engraving, stone setting and pave for jewelers, engravers and metal artists


 Click here for More Information

Replaceable dead blow bore and optional tungsten piston

FEATURE

BENEFIT

SPM speed range
(Strokes per Minute)
Stainless piston: 2,400-15,000 SPM
Tungsten piston: 1,500-11,000 SPM

Smooth cutting and less point breakage.  When desired the point can move though the metal faster.  Complete engraving projects faster with improved control

No motorized control box needed

No constant background noise or vibration from a motorized control box, less space required

Patented Variable/adjustable piston stroke length

Extremely broad cutting range, increased versatility, only one handpiece needed

No piston spring

Power range not limited by spring strength

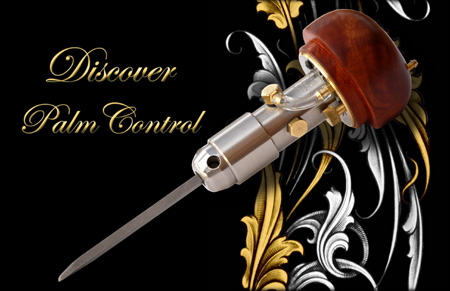

PalmControl available
(patented and patents pending)

Eliminates foot pedal; easier to learn; no need to coordinate foot and hand movements; intuitive to “hand” engraving

Controls on handpiece

Make adjustments “on the fly”

Wall-mount regulator

More space on bench

Rubber handle

Non-slip for solid control

Supports pocket sized CO2 operation

Can be used with no electrical connection; completely portable

Air consumption.
0.1 to 0.3CFM
(CFM= Cubic Feet per Minute)

Small air compressor or CO2 bottle operation,
 Compressor will last longer

No collets needed

Faster, easier tool changes

No tuning required

PSI and impacts speed are always in sync; no need to manually tune one with the other

Patented idle

Prevents possible jump at start of cut

Removable Teflon lined bore
(patent pending)

Self-lubricated and easily replaced

Hardened piston, anvil and nose; 303 stainless body

Durable

Optional Tungsten Dead Blow piston  (patent pending)

Additional power if  needed

The AirGraver is also unique in that the speed and power increase proportionately.  This allows the benefit of increased speed to move a graver point through a cut when desired.   The end result is very transparent throttle response.

"A truly unique advance of engineering. The PalmControl AirGraver is a marvel of invention, and works flawlessly on the most delicate of engraved lines, and for deeper lines. All one needs is the slightest adjustment of palm pressure.  I heartily endorse this remarkable instrument."
Robert Swartley, Napa CA

"My new PalmControl Air Graver has served me well during the Christmas rush.  I must have cut 5,000 letters, monograms and associated decorative scrolls and borders over the past month....everything from large signet rings to delicate hollow pieces like bangle bracelets and lockets that were the thickness of foil - to delicate antique watch cases, and more.  I've made the transition from foot power to PalmPower and now find it to be entirely natural with absolute control - I no longer have the subconscious need to press the pedal!"
 Mike Dubber, Evansville, IN


  Information and Prices at
www.AirGraver.com
